Digital UCS1903 RGB 144Pixel 3 Rows One IC LED Strip

Overview

Digital IC controllable RGB LED strip light , 3 leds one IC control , 3 rows strip light ,

20mm PCB width . 144leds per meter , 48 ICs per meter , DC12V working .

Product Description

Part NO	SJ-100144-1903
Lighting Source	SMD 5050 RGB LED
Beam Angel	120 degree
Operate Voltage	DC12V
Consumption Watt/M	34.5 Watt (max)
Pixel Pitch (mm)	P20.8mm
LEDs(Pixel)/M	48 Pixels/m
IC chip	UCS1903
PCB Color	White
PCB Width	20mm
Waterproof Grade	IP20/IP65(Silicon tube/ silicon injection )
Working temperature	-20℃-60℃
Storage temperature	-30℃-80℃

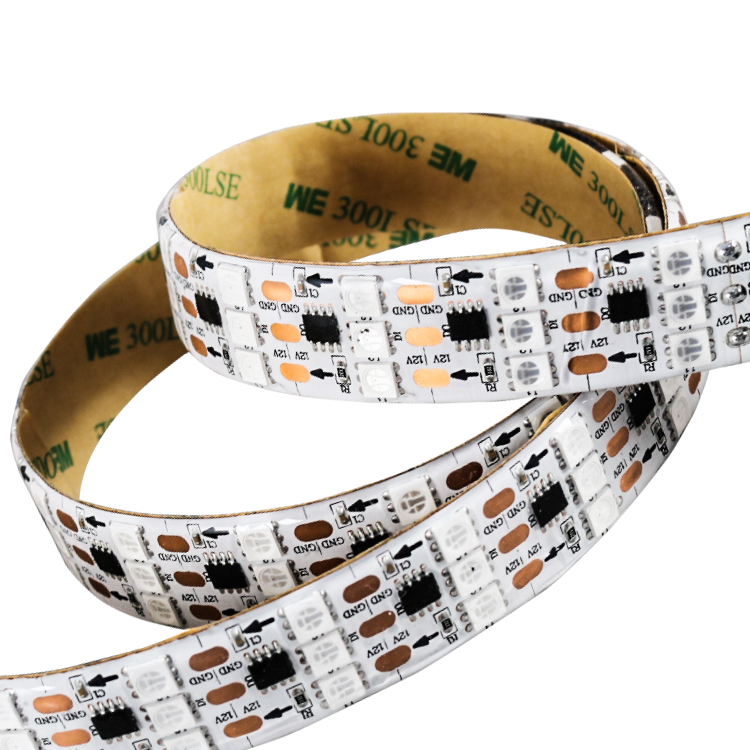

1.Three rows digital led strip light , 144leds per meter , 48 pixels per meter , UCS1903 IC chip , support controller individually operate .

2. White PCB and black PCB optional .

3. It regulately comes in 1 meters per continue strip with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable too .

4. Flexible PCB material . Each 3LEDs per Pixel , each pixel can be cut , there is cut lines every 20.8mm.

5. DC24V low voltage feeding , don’t over 25V , otherwise you will destroy the entire strip .

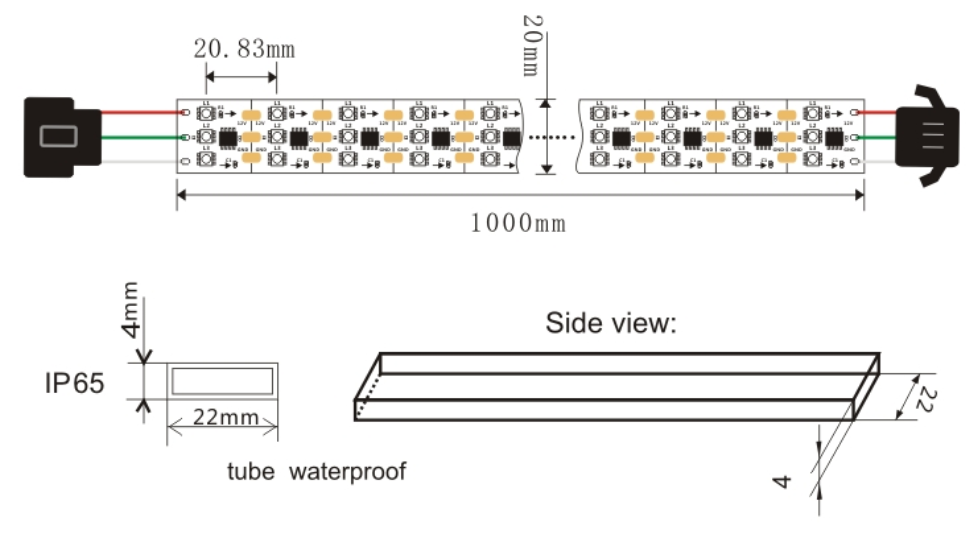

6. 20mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 22mm width , 4mm thick with silicon tube for waterproof type .

7. It is only Date Pin for signal transfer , no Clock Pin .

8. Controller System：SD controller , DMX controller , Artnet and so on .
