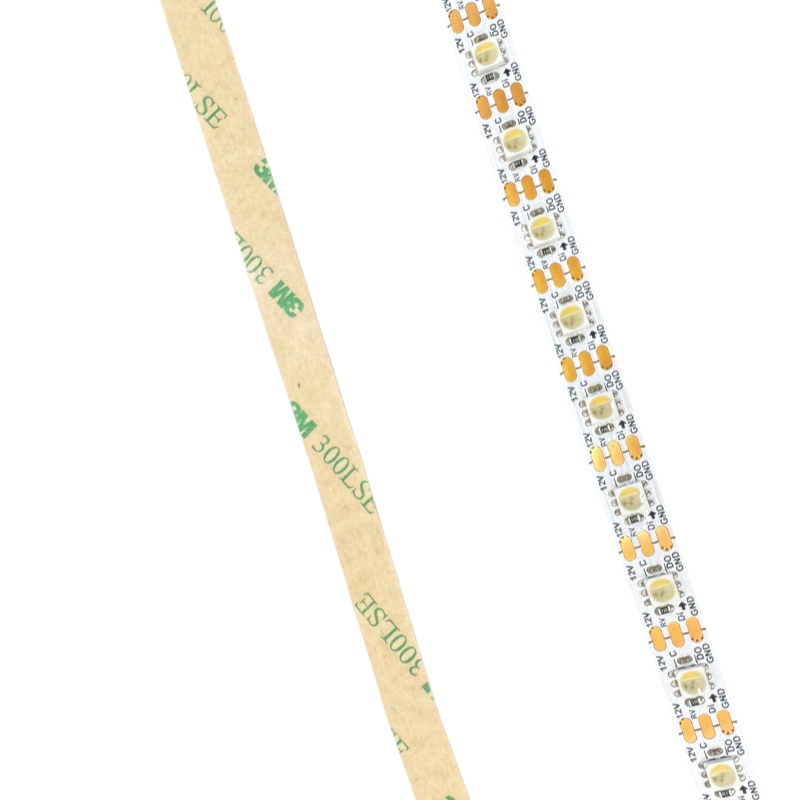

DC12V Addressable Digital SK6812 WS2815 RGBW LED STRIP Tape Light

Home > Products > Flexible LED Strip > Digital LED Strip > DC12V Addressable Digital SK6812 WS2815 RGBW LED STRIP Tape Light

DC12V Addressable Digital SK6812 WS2815 RGBW LED STRIP Tape Light

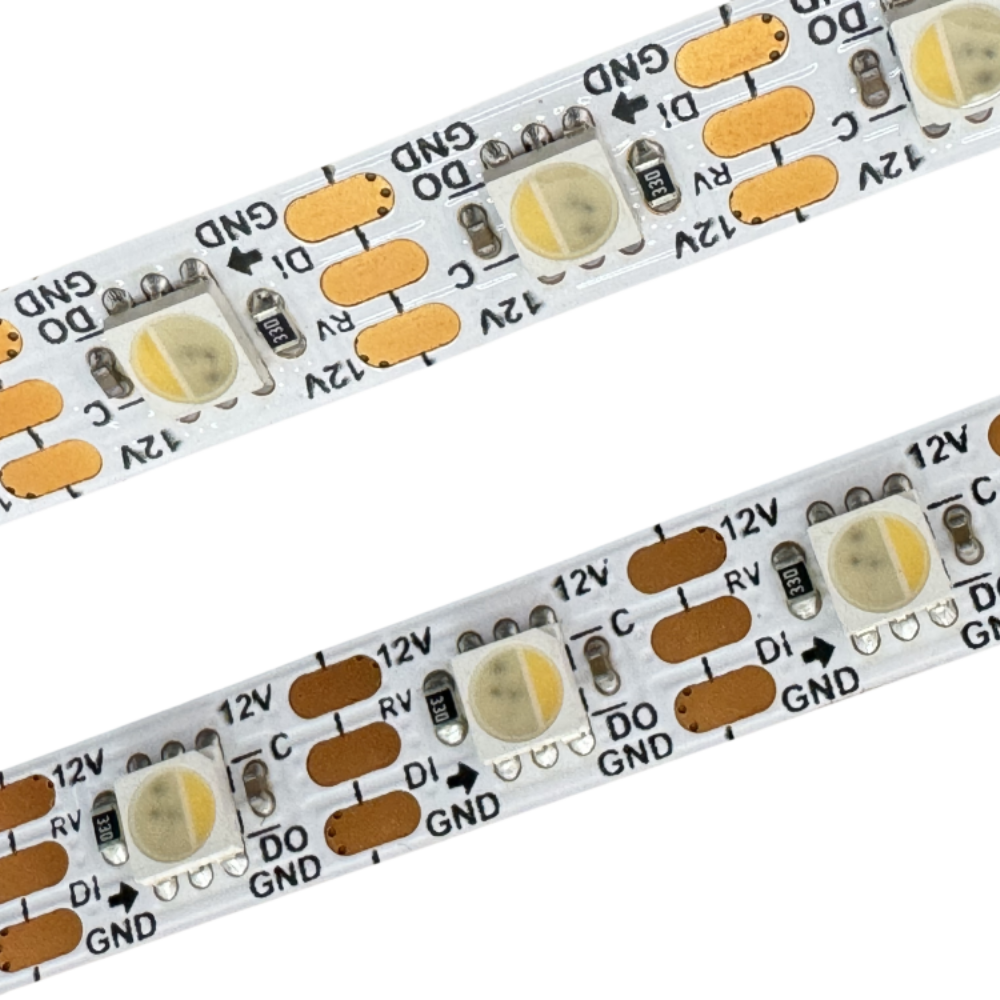

SMD 5050 RGBW Addressable LED Strip

the IC built in the LED chip (individually controlled every LEDs).

The color(CCT) of White can be warm white, pure white and cold white

60Pixels per meter, cut-able every 16.66mm

The PCB is 1+1 Ounce copper, 10mm width

White and Black PCB are available, DC12V voltage

5 Meters per reel, Customized sizes are also available

3Pin JST SM connector, IP Rate: IP20,IP65,IP67

Product Description

Product Parameter

Product NumberF10B60LSK6812RGBW12V
VoltageDC12V
Power19.2W/M
LED Type    SMD 5050 RGBW
White Color3000K/4000K/6000K
LED Quantity60LEDs/m
Cutting length16.66mm / 1LED
ProtocolSPI - SK6812
Dimension 5000*10mm
Pixel/m60 Pixel
Beam Angle120°
Operating Temperature
-25℃ ~ 60℃

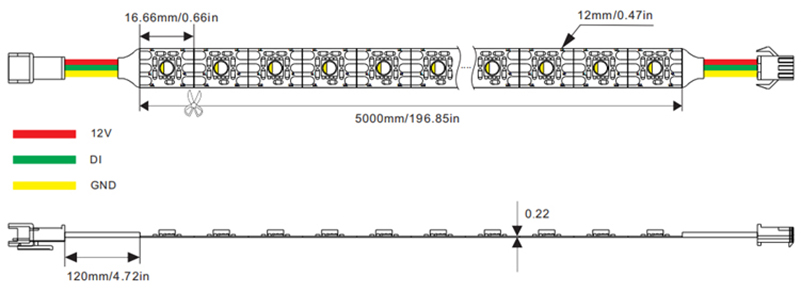

Dimension (unit:mm)
