Bendable Zigzag SK6812 RGB Digital Addressable LED Strip

Home > Products > Flexible LED Strip > Digital LED Strip > Bendable Zigzag SK6812 RGB Digital Addressable LED Strip

Bendable Zigzag SK6812 RGB Digital Addressable LED Strip

SMD3535 RGB LED sourcing

Thin 5mm PCB width

Digital addressable control

Low voltage DC5V

30/48/60LEDs meter

IC SK6812 pixel protocol


Product Description

Super bendable Mini Zigzag led strip ,it is the sk6812 IC chip built in side 3535 rgb didoe , each led is one pixel , individually addressable pixel control .

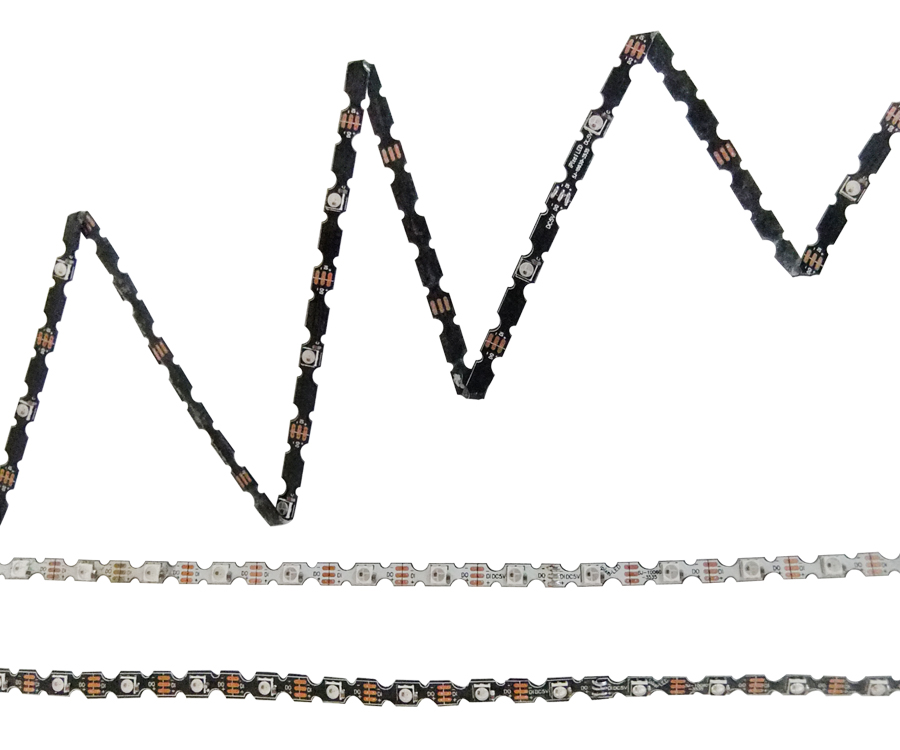

Thin 5mm PCB width , Zigzag/ S shape design make it bending and rotation in any case. It's the "skinny" version of our addressable rgb pixel strip.



PCB color white and Black available for choosing , different density with 30/48/60 leds per meter.



The standard size is 2.5meters per roll, but the length per roll can be customized such as 2 meters per roll.



3PIN JST SM connector on both ends for easy connecting in chain , and extra two wires each roll for easy power feeding .


P/N

ZH0530SK681235V5

ZH0548SK681235V5

ZH0560SK681235V5

Lighting source

SK6812 SMD3535 RGB

Voltage

DC5V / D12V

Wattage

7.2w

11w

14w

Pixels /m

30

48

60

PCB width

5mm

Pixel pitch

33.3mm

21mm

16.7mm

Standard reel

2.5m/reel

PCB color

White /black

O . T

-30℃ ~ 50
