Addressable RGB PIXEL COB LED Strip Light

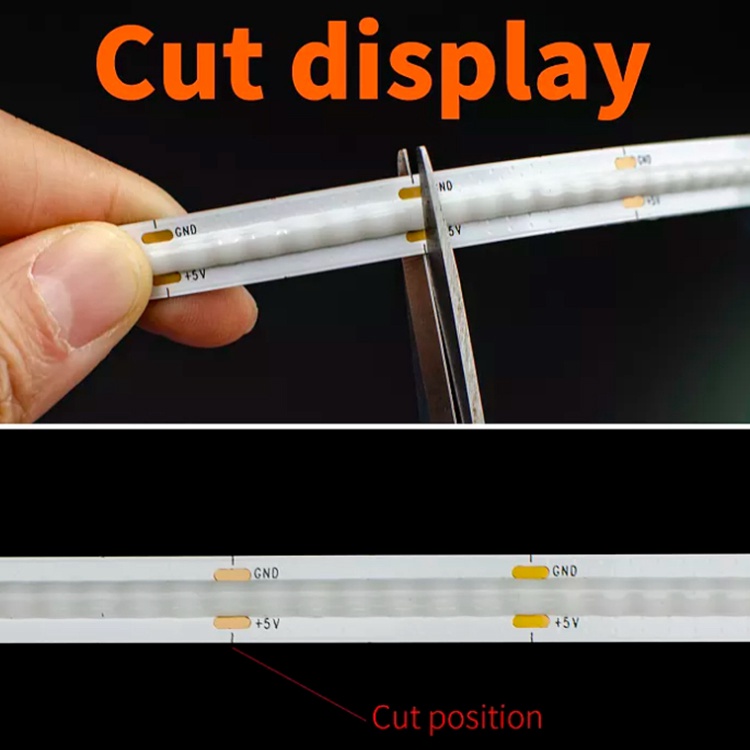

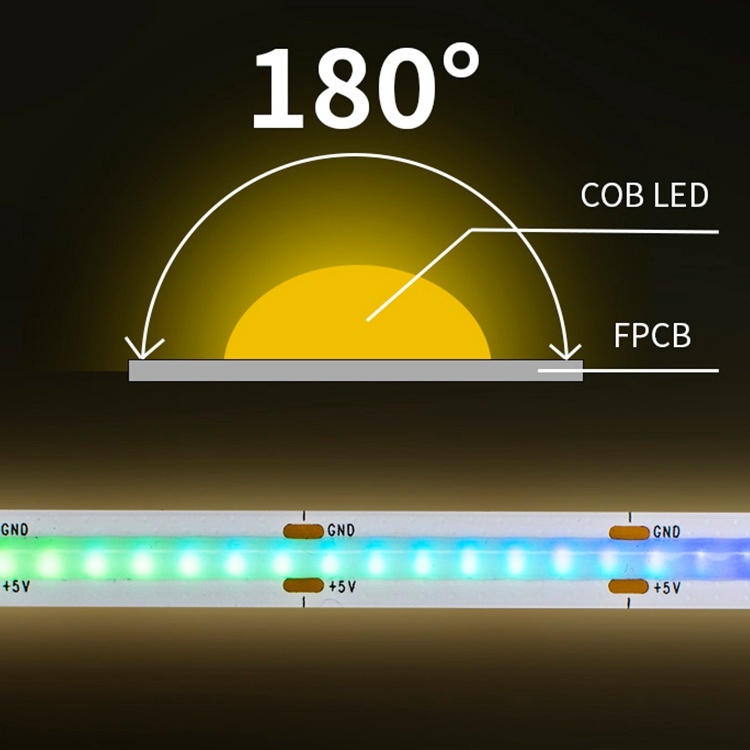

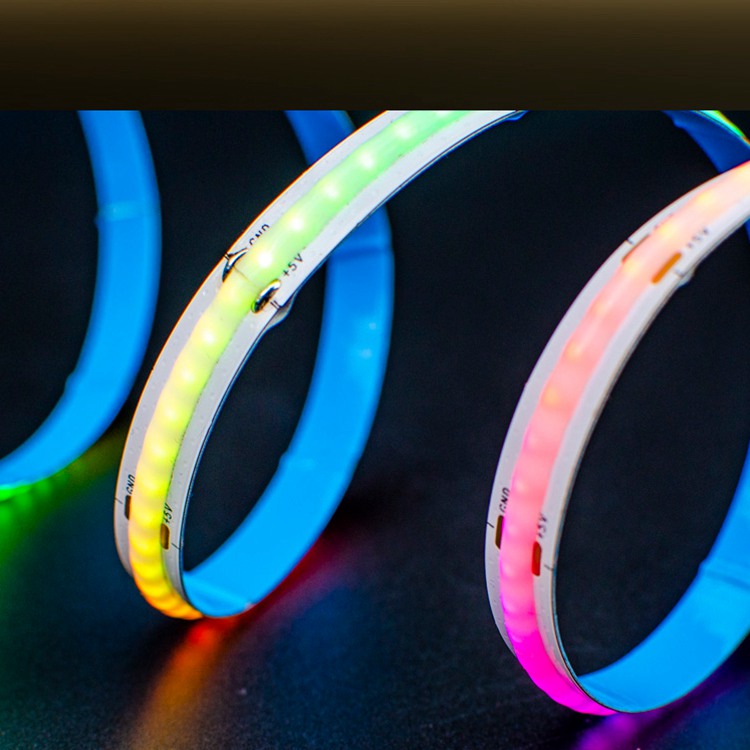

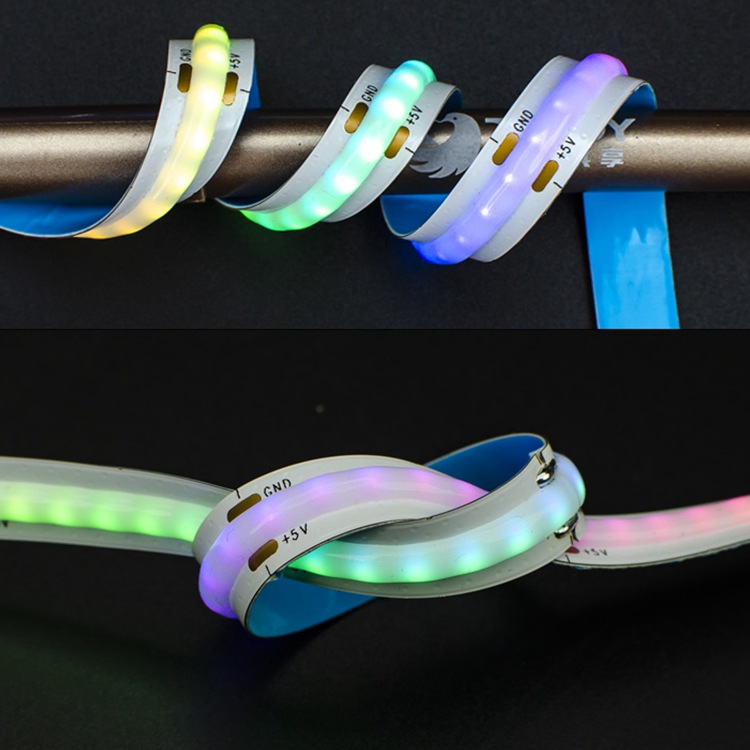

Why COB? CHIP-ON -BOARD. COB strip is the strips that chip build on PCB directly, It does not have the packaged stands.

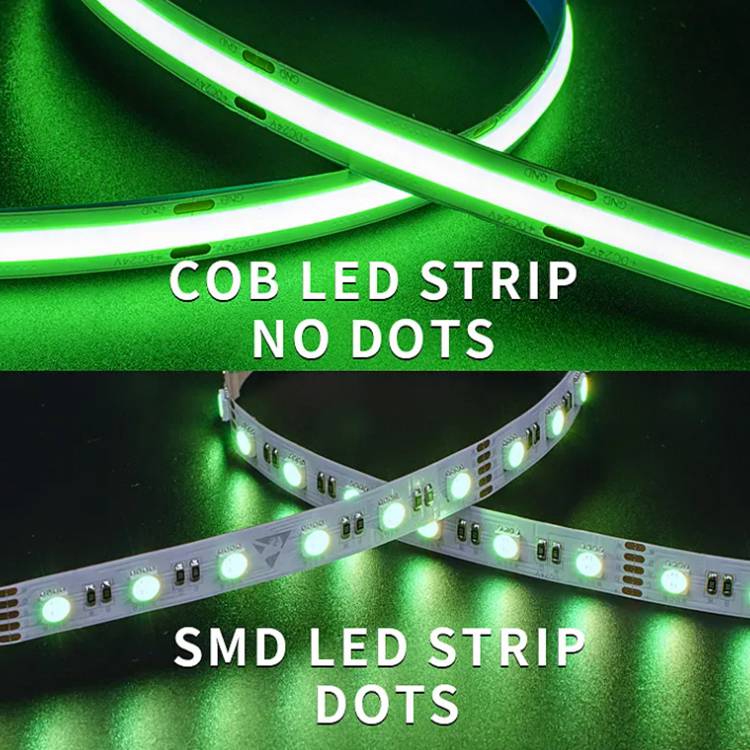

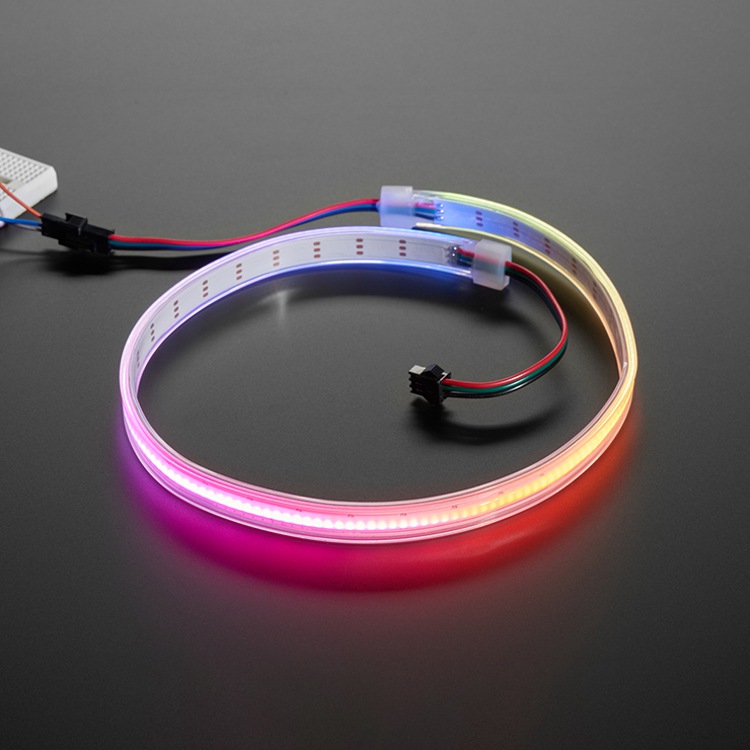

It is the ultra high density pixel strip with an amazing 332 chips per meter, they crammed together and coated with a milky silicon bead to give it a smooth and continues color gradiant.

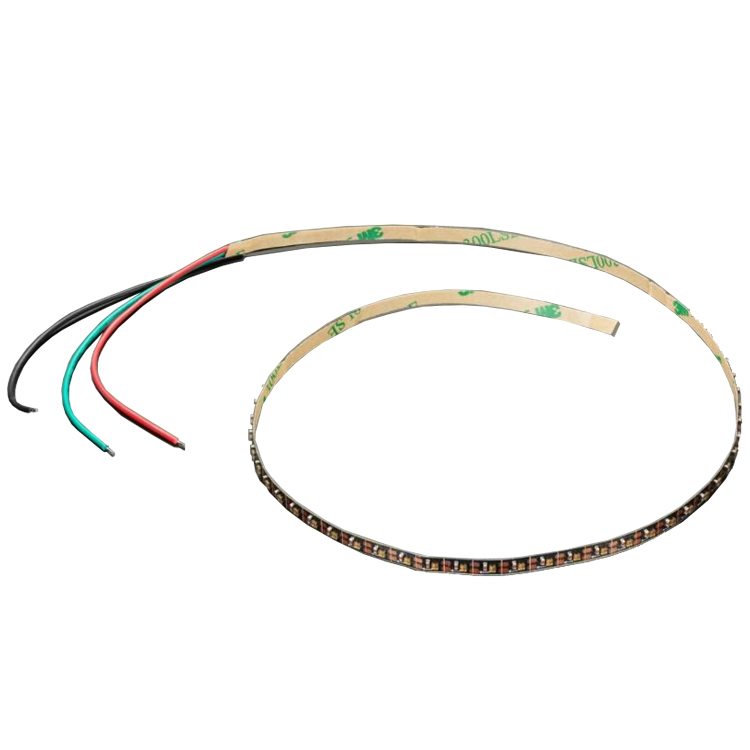

Addressable pixel COB led strips PCB 10mm wide, the strips come on a reel with three 10cm long wires connected to a JST SM 3-PIN plug and a 3-pin socket on the other. The wires are even nicely color-coded: black for ground, green for signal, red for 5V DC power.

Same as our family addressable pixel strips, you also can set this addressable pixel COB strips each LED's red, green and blue component with 8-bit PWM precision ( so 24 bit color per pixel )

These LEDs use up to 20 Amps max per meter - this strip is half that length so 10A max. The max rating is assuming all the LEDs are on full white and there's no voltage drop! That's not going to be realistic on such a thin flexible PCB - the copper just isn't thick enough to handle so much current without heating up! So basically don't set all the LEDs on at full brightness. Usually, the actual current for colorful design is less than 1/3 of the max current.
